BFPV-H Series and BFHB Series

BFPV-H Series and BFHB Series

BFPV-H Series and BFHB Series

  • Product Parameters
    BFPV-H00   32A-100A   1000V DC

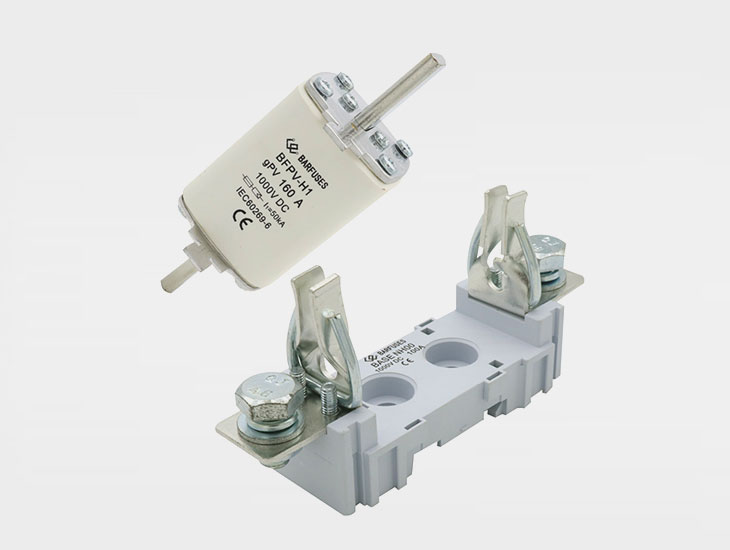

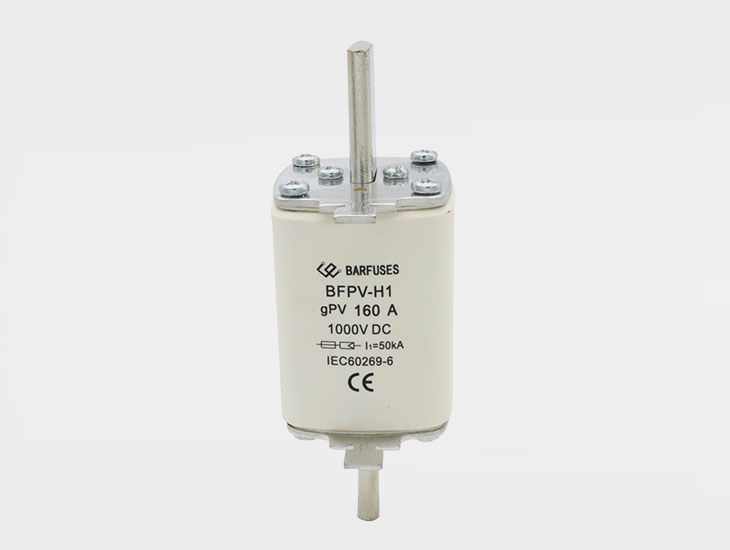

    BFPV-H1   125A-160A   1000V DC
    BFPV-H2   160A-250A   1000V DC
    BFPV-H3   300A-400A   1000V DC

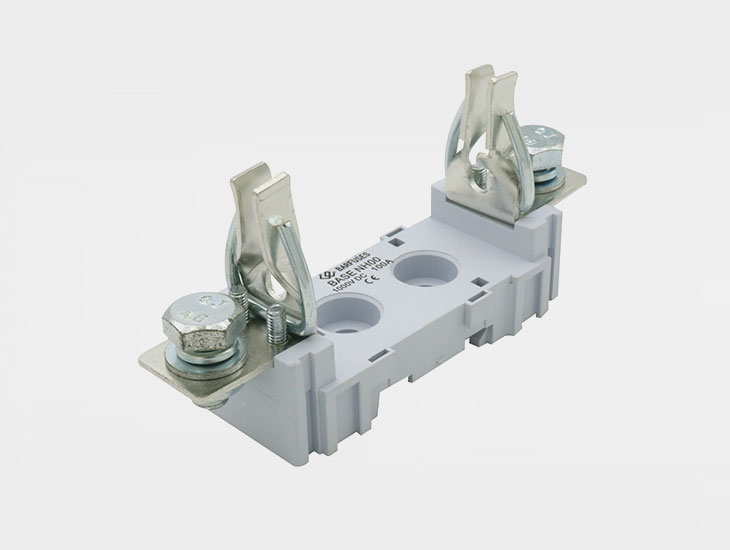

    BFHB-00   100A   1000V DC
    BFHB-1   160A   1000V DC
    BFHB-2   250A   1000V DC
    BFHB-3   400A   1000V DC


    Photovoltaic Fuse
    Class of Operation: gPV
    Standard: GB/T13539.6   IEC 60269-6
    Breaking Capacity: 50kA

    Class of Operation: gPV
    Standard: GB/T13539.6   IEC 60269-6
    Breaking Capacity: 20kA

Enquiry Now

Questions or Comments Now

Your Name (required) Your Email (required) Your Message

Type & Specifications

Technical Parameters

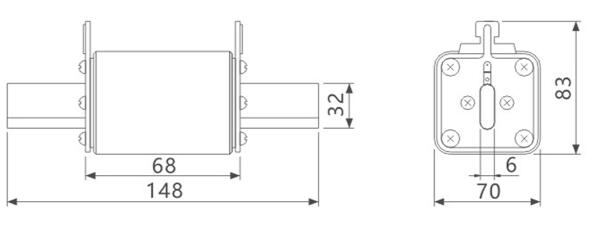

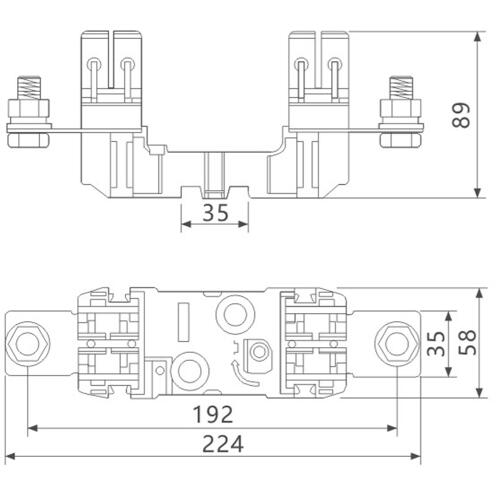

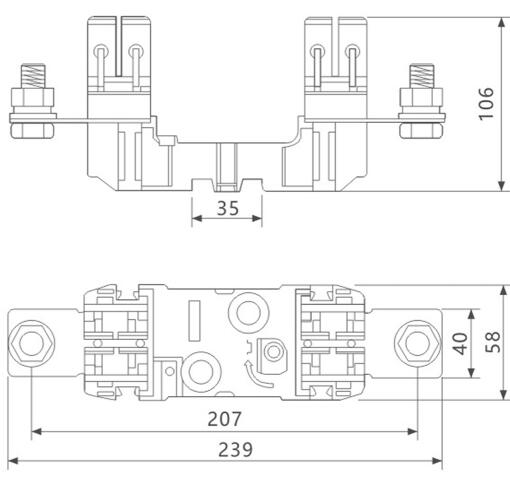

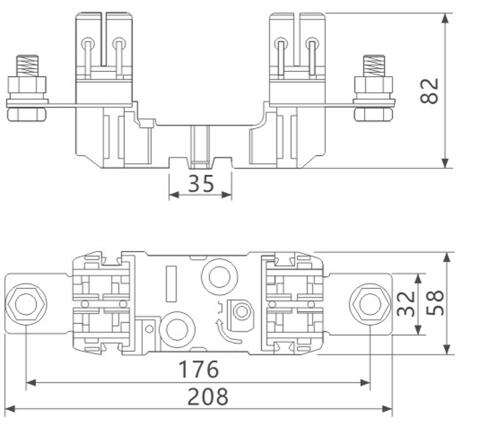

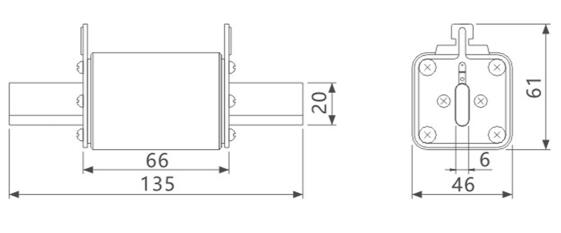

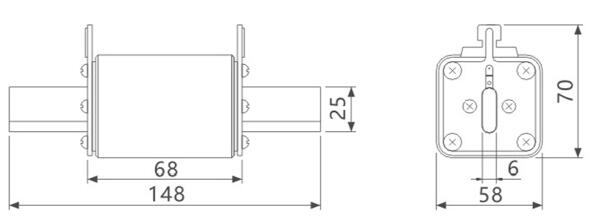

  • Dimensions-mm

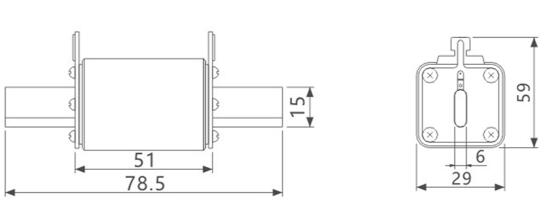

  • BFH-00


  • BFH-1


  • BFH-2


  • BFH-3

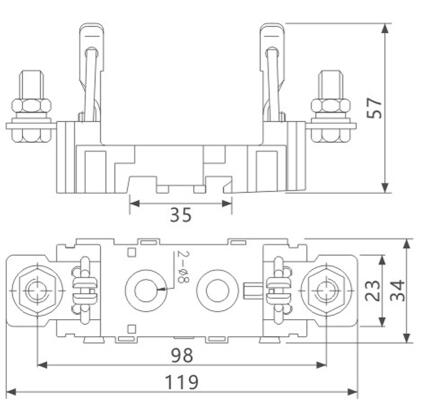

  • BFHB-00


  • BFHB-1


  • BFHB-2


  • BFHB-3
