BFPV-1085 / 1485 / BFPV-65L

BFPV-1085 / 1485 / BFPV-65L

BFPV-1085 / 1485 / BFPV-65L

  • Product Parameters
    BFPV-1085   2A-32A   1500V DC
    BFPV-1085S   2A-32A   1500V DC
    BFPV-1485   30A-50A   1500V DC
    BFPV-65L   1500V DC(10X85/14X85)

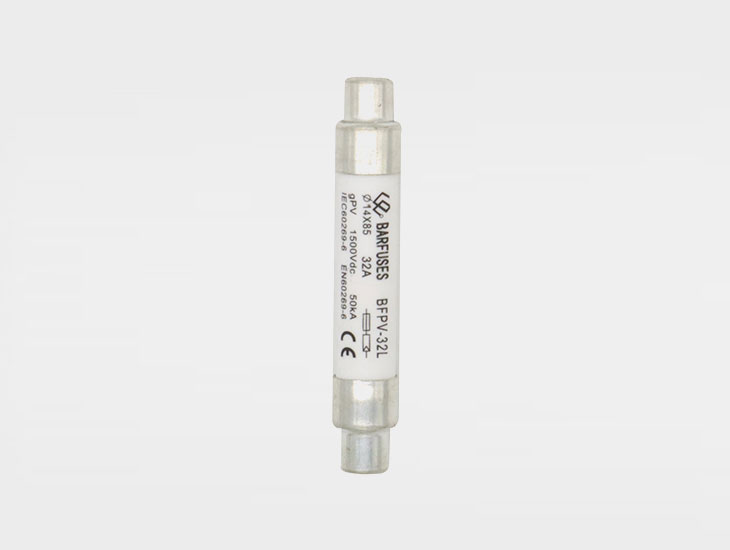

    Photovoltaic Fuse
    Fuse Size: 10X85/14X85mm
    Class of Operation: gPV
    Standard: GB/T13539.6   IEC 60269-6
    Breaking Capacity: 20kA

    Rated Voltage: 1500VDC
    Class of Operation: gPV
    Standard: GB/T13539.6   IEC 60947-3

Enquiry Now

Questions or Comments Now

Your Name (required) Your Email (required) Your Message

Type & Specifications

Technical Parameters

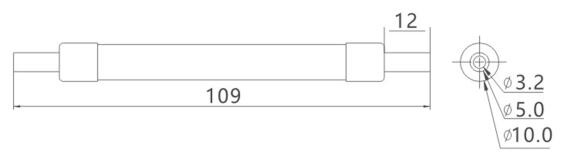

  • Dimensions-mm
  • BFPV-1085


  • BFPV-1085S


  • BFPV-1485

  • BFPV-65L
