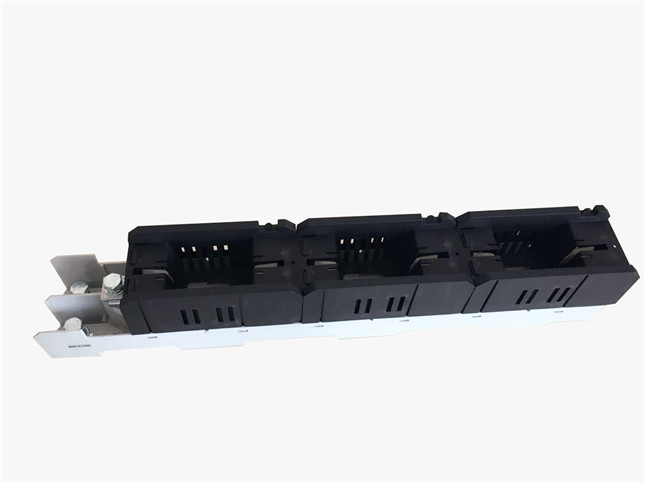

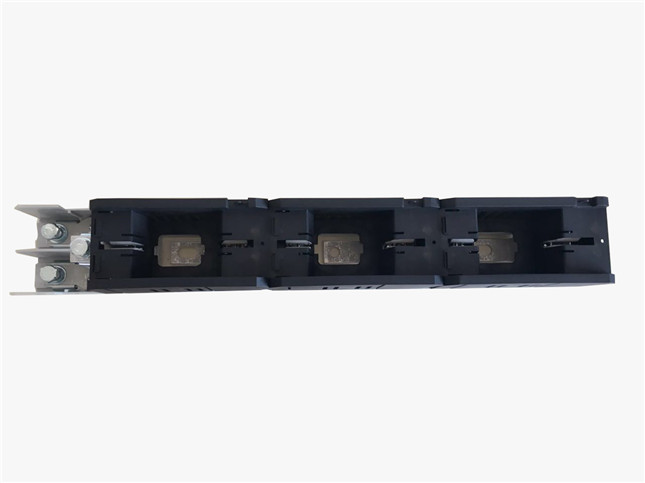

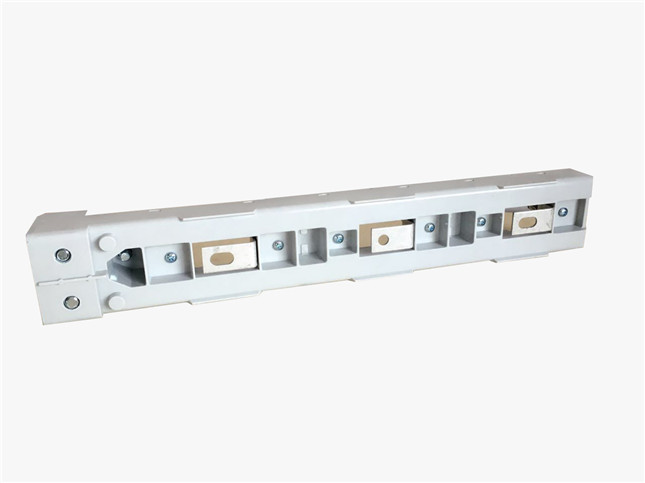

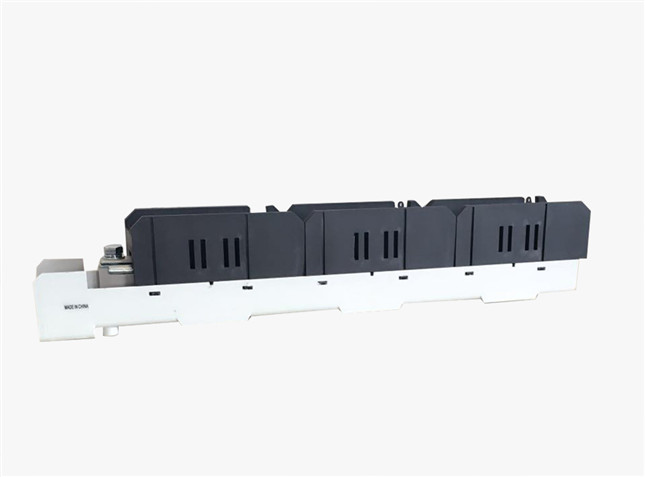

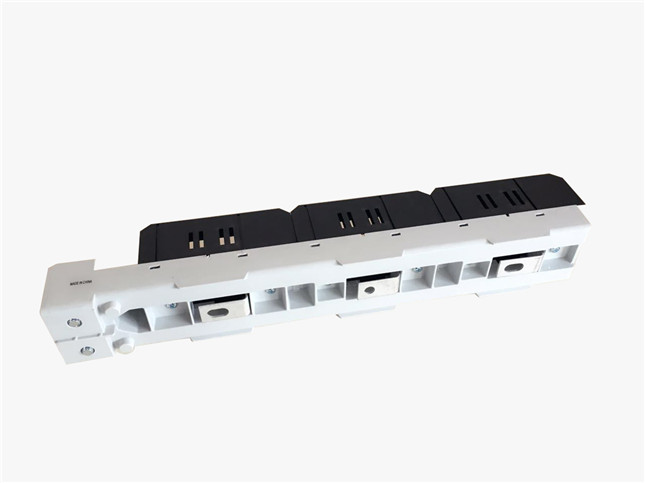

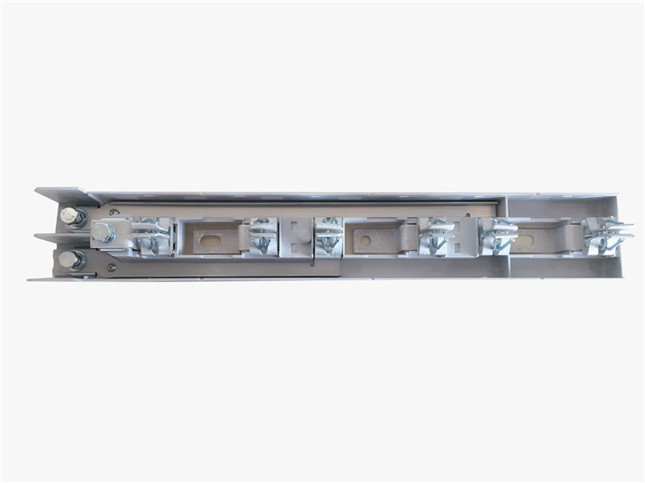

  • Barfuses® Fuse Rails BTR 5

Enquiry Now

Questions or Comments Now

Your Name (required) Your Email (required) Your Message

Type & Specifications

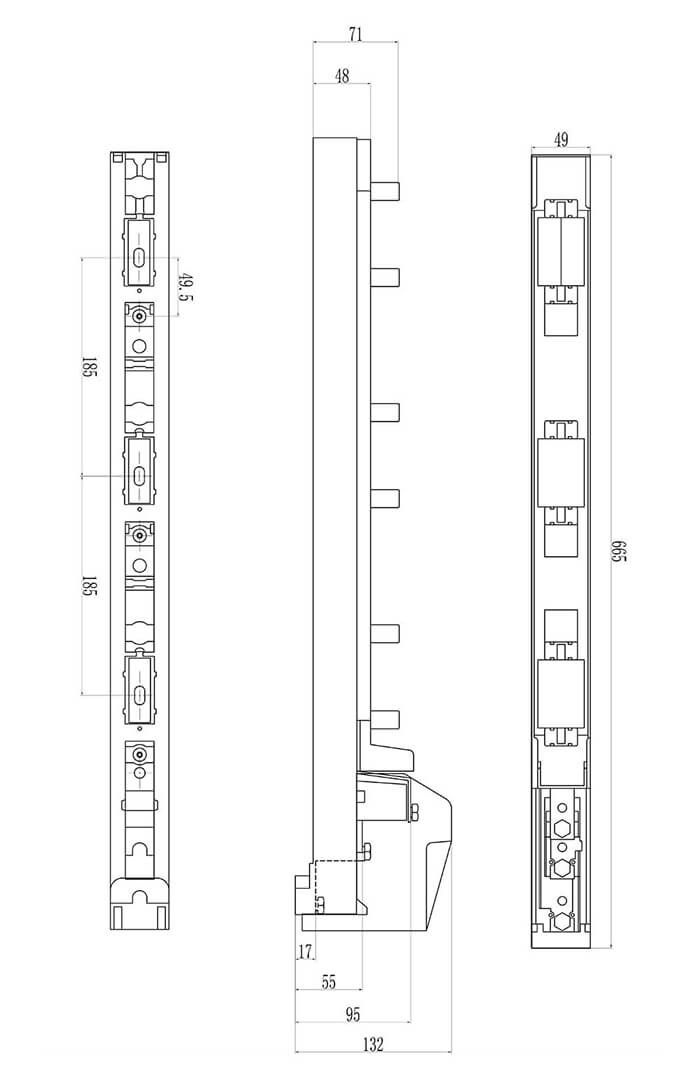

Technical Parameters Installation Dimensions
  • Type Of Fuse SwitchBTR1-160E
    Rated Voltage (Ue)415,500,690V
    Rated Thermal Current (Ith)160A
    Rated Frequency50/60 Hz
    Rated Insulation Voltage(Ui)1000V
    Rated Impulse
    Withstand Voltage(Uimp)
    10KV
    Application Classes415V500V690V
    AC23BAC22BAC21B
    Degree Of ProtectionIP30
    Fuse Size00
    Rated Voltage (Ue)415V500V690V
    Rated Working Current(Ie)160A160A100A
    Wire Specifications700mm²
    The Default Connection ModePressure plate connecting
    The Other Connection ModeScrew&Cable lug
    Installation Of Busbar1. Punched rectangle busbar 2. Unpunched rectangle busbar 3. Other
    Fixed Way1. Screw 2. Hook 3. Other custom accessories
