BH Fuse Bases

BH Fuse Bases

  • Barfuses® Fuse Bases BH(NH)
Enquiry Now

Product

Questions or Comments Now

Your Name (required) Your Email (required) Your Message

Type & Specifications

Technical Parameters Technical Parameters Installation Accessories

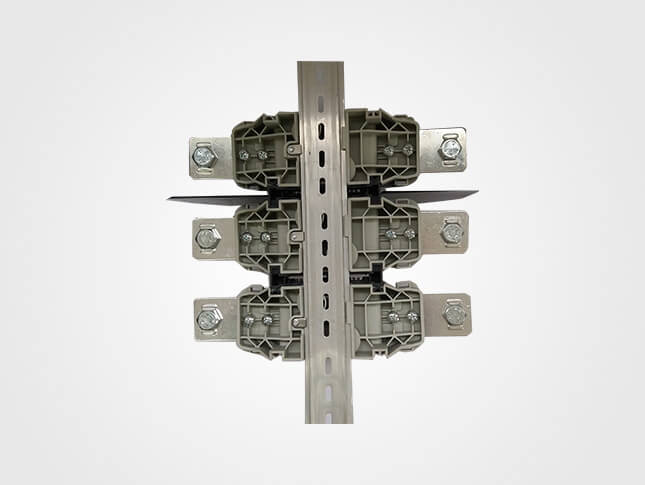

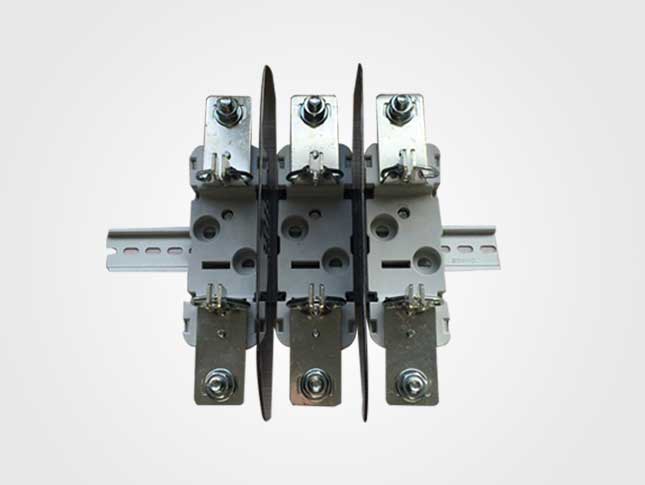

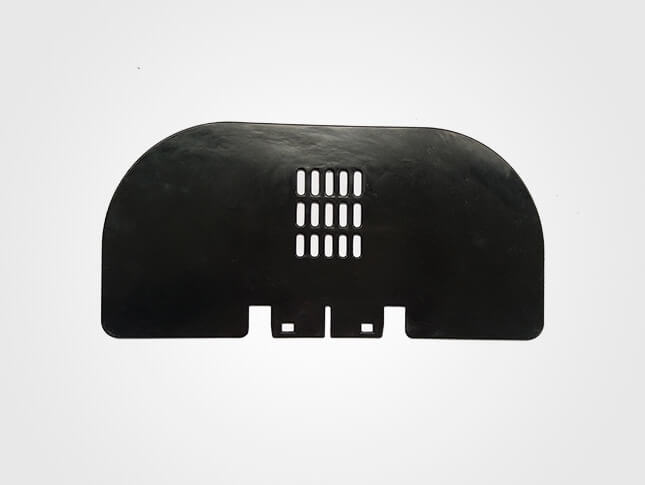

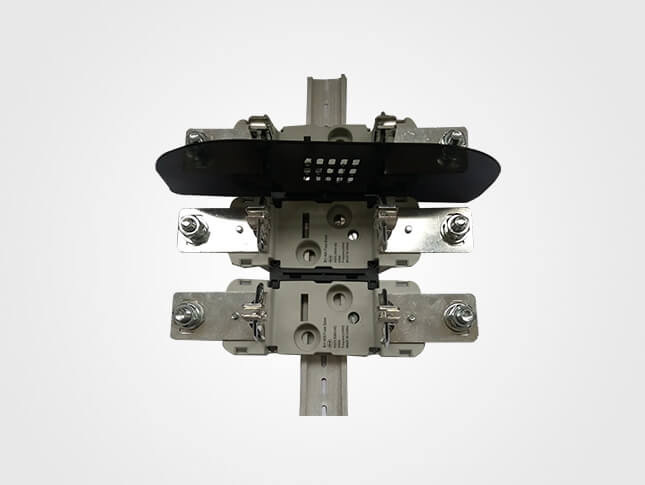

  • Description: BH (NH) fuse bases with thermoplastic bodies. DIN Rail and Screw Mounting (size 4 screw fx). This series comes with the clip-in phase barriers kits and neutral links, it obtain IP20 protection standard.

    Ratings:
    ·Fuse Sizes 1, 2, 3,
    ·Voltage: up to 690Vac
    ·Amps: 2 to 1250A
    ·Breaking capacity: 120kA

    Applications: Protection of industrial circuits and electrical apparatus

    Standards and Approvals: IEC 60269, DIN 43620

  • DescriptionBH-250BH-400BH-630
    BodyPBT
    ContactsSilver plated copper
    Screw, Nuts and WashersZinc clear plated steel
    Derating Temperature Factors
    for maximum current    		≤30 °C111
    40°C0.950.950.95
    50°C0.850.850.85
    Maximum Power acceptance32w45w60w
    Degree of ProtectionIP20IP20IP20
    Terminal ScrewM10M10M12
    Maximum Tightening Torque Screw32N•m32N•m32N•m
    FixingBoth Din Rail and Screw
    Operating Temperature-20 ~ 70 °C
    Storage Temperature-40 ~ 80 °C

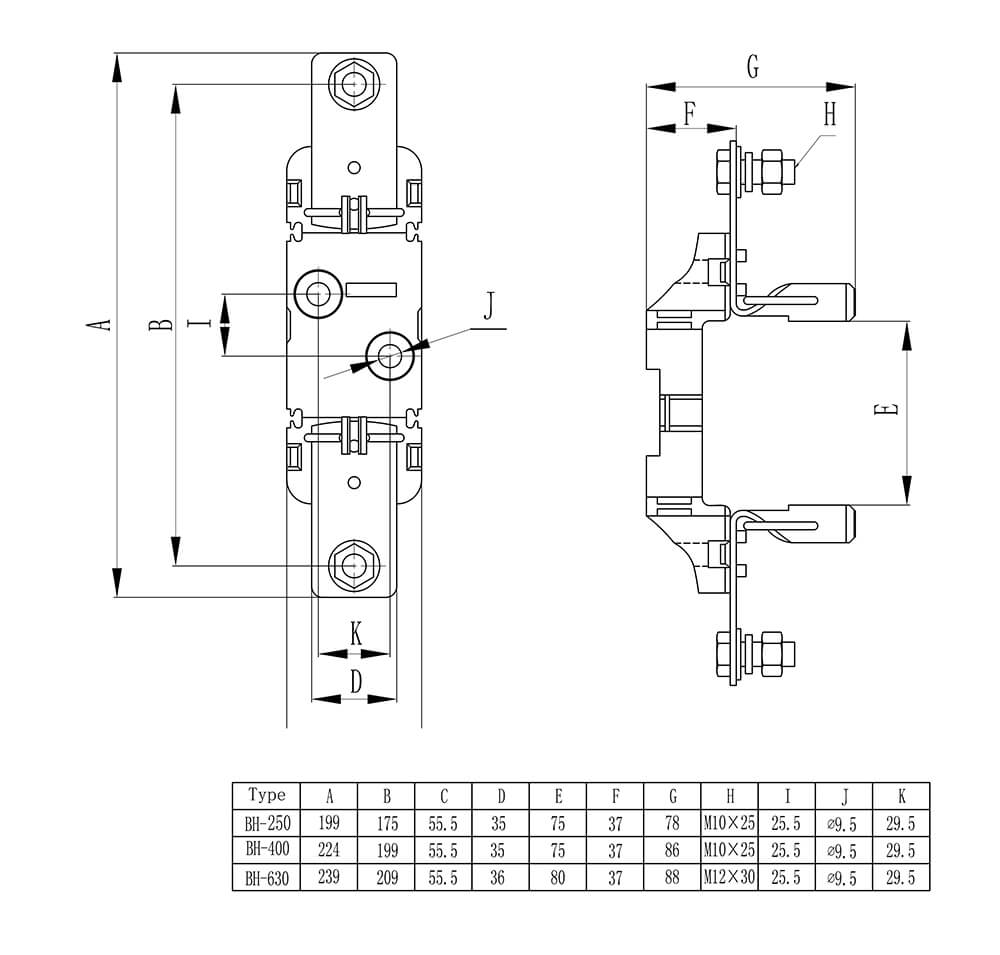

  • Dimensions 1 pole, Sizes 1, 2, 3

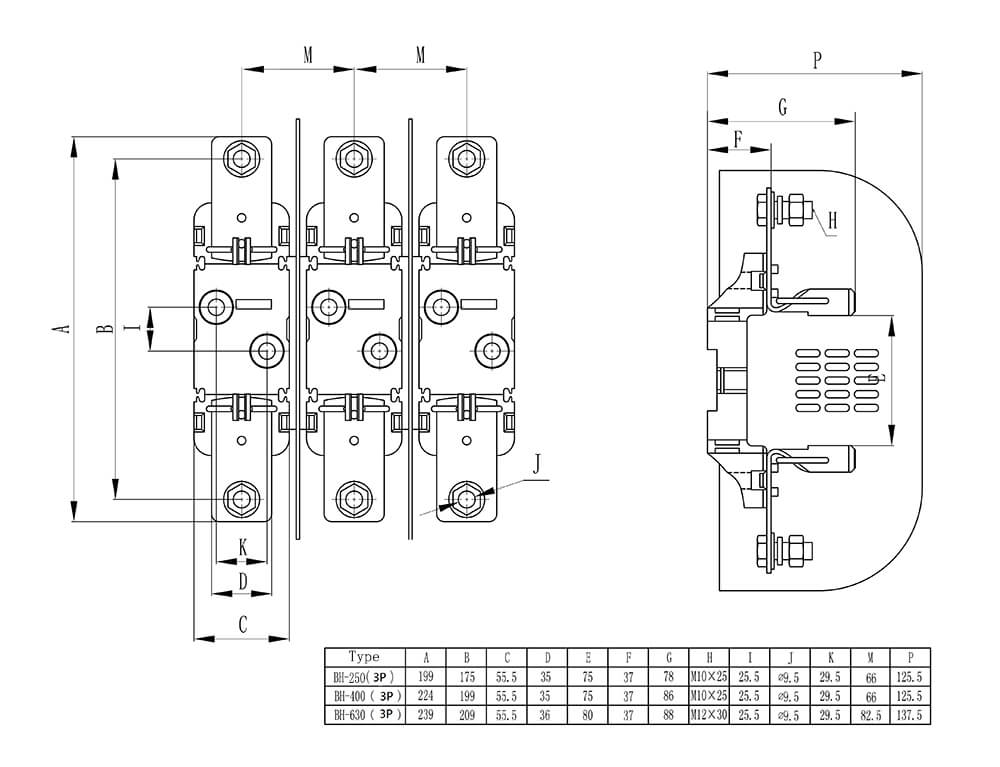

  • Dimensions 3 pole, Sizes 1, 2, 3

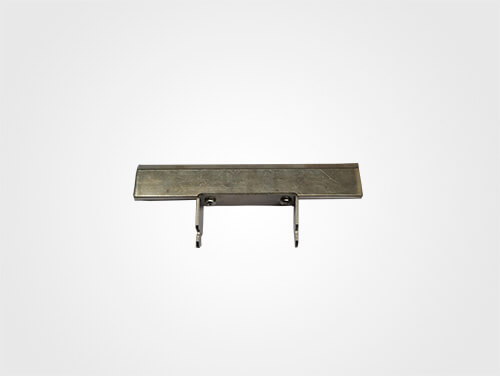

  • 1. Neutral

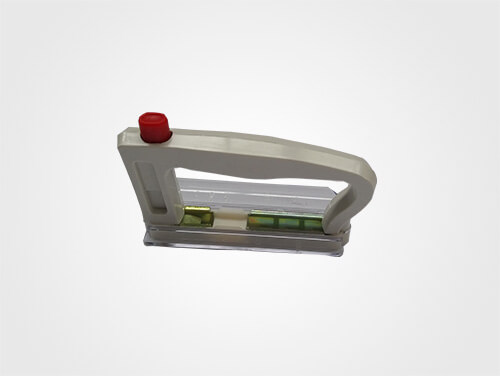

  • 2. Fuse extraction handle
